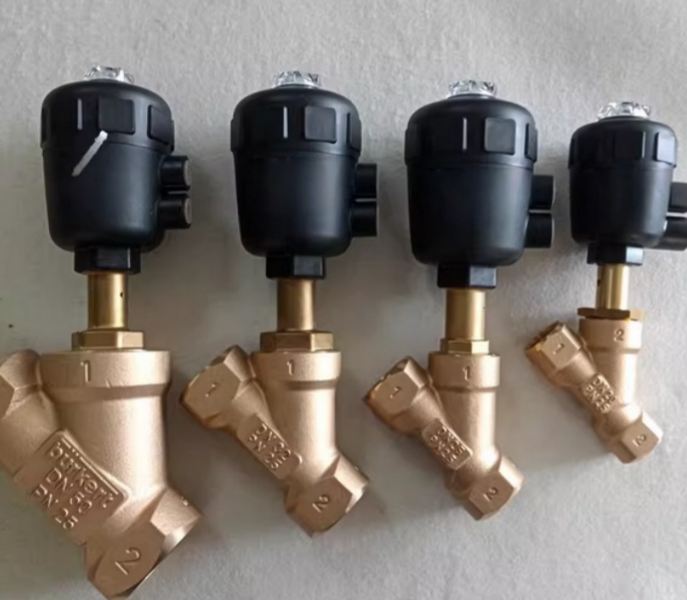

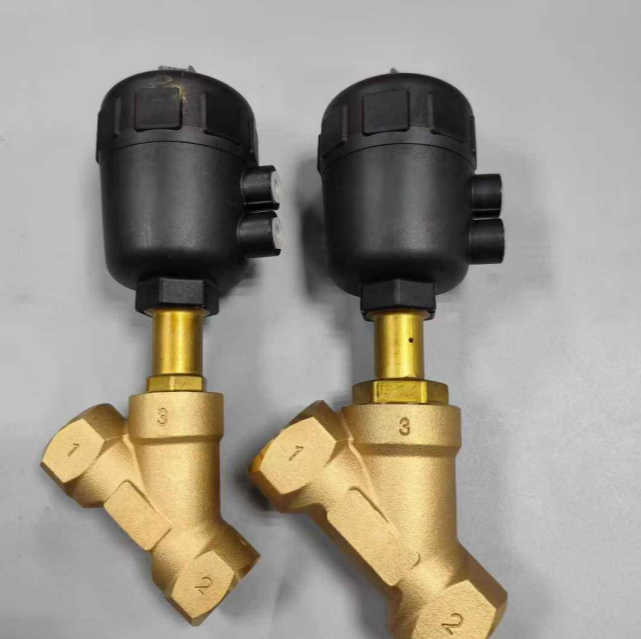

High Temperature Brass Pneumatic Angle Seat Valve Y Type Pneumatic Angle Valve for Textile Food Sterilization Equipment

Premium forged brass valve body features excellent thermal conductivity and moderate corrosion resistance, cost-effective than stainless steel version, ideal for steam, hot water, compressed air and neutral fluid pipelines, stable under frequent switching conditions.

Y-type angle seat structure brings large flow capacity and low fluid resistance, effectively avoids water hammer phenomenon, with self-cleaning function, not easy to block by tiny impurities, suitable for high-viscosity and particle-containing media.

Equipped with high-temperature resistant PTFE/PPL sealing, working temperature ranges from -30℃ to 180℃(PPL up to 220℃), PN16 working pressure, bidirectional tight sealing with zero leakage.

Support single acting (normally closed/normally open) and double acting two control modes; single acting adopts spring safety reset design, automatically cuts off when air supply fails to protect pipeline equipment. The pneumatic actuator can rotate 360° for flexible installation in narrow space.

Standard BSP/NPT internal thread connection, size covers DN15/DN20/DN25/DN32/DN40/DN50, widely used in textile printing and dyeing, food sterilization, laundry equipment, heating, water treatment, beverage filling industry, OEM & ODM customization is acceptable.

Qingdao Yida Tongtu Machinery Technology Co., Ltd., in the beautiful coastal city of Qingdao. Specializing in high-growth ventures such as valves and power equipment, the company is dedicated to providing comprehensive solutions for industries including petroleum, chemicals, and water utilities, empowering clients to grow and achieve success.
We are a cutting-edge trading enterprise specializing in one-stop industrial valve matching, deeply cultivating gate valves, globe valves, ball valves, check valves, butterfly valves, etc. Our main products include American standard API, German standard DIN, and Japanese standard JIS, suitable for various industries such as chemical, petroleum, gas, power, metallurgy, etc.
We selects qualified factories from the source, strictly controls product quality, adheres to the direct supply mode, and relies on the advantages of a streamlined and efficient team to achieve rapid implementation of customer demands. At the same time, we can provide customers with standard spot goods, non-standard customization, OEM, project batch matching, and a complete set of export documentation services, becoming a long-term stable valve procurement partner for customers with professionalism, reliability, and high cost-effectiveness.
